In the world of 3D animation, visual effects, and game development, achieving realistic renderings is essential. One of the groundbreaking techniques that has revolutionized how digital materials look is Physically Based Rendering (PBR). This rendering approach aims to simulate the interaction of light with materials in a way that closely mirrors how light behaves in the real world. It also produces visually stunning and accurate results. In this blog, 3S Cloud Render Farm will dive into what PBR is, its key advantages, the principles it follows, the types of texture maps used, and its various applications.

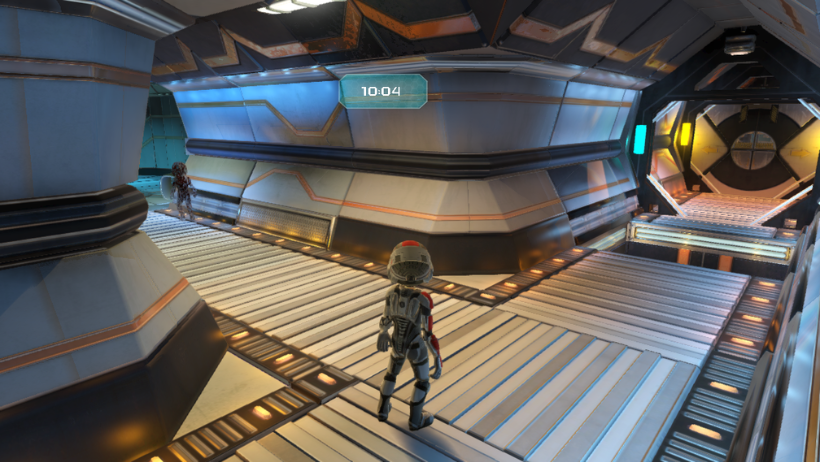

Source: ModBD

What is Physically Based Rendering?

Physically based rendering is a rendering technique that focuses on achieving realism by adhering to the principles of physics in how light interacts with surfaces. PBR differs from traditional rendering methods by incorporating real-world material properties, like roughness, in a more scientifically accurate manner. This method uses the laws of physics to calculate how light interacts with various surfaces.

Unlike older techniques that used approximations, PBR offers a more physically accurate approach. This results in consistent, realistic renderings under different lighting conditions. If you’re working in a 3D animation, PBR ensures that materials look and react the same way they would in the real world, regardless of where or how they are viewed.

Key Advantages of Adopting Physically Based Rendering (PBR)

We have talked about the definition of physically based rendering. So what are some benefits of using this kind of technique?

• Realistic Lighting and Material Interaction: One of the most significant advantages of PBR is its ability to simulate how light behaves when it interacts with materials. By using accurate material properties, the lighting in a scene becomes more believable, and surfaces appear more lifelike. Whether it’s the glossiness of a wet surface or the reflective nature of polished metal, PBR helps to replicate real-world lighting dynamics.
• Consistency Across Different Rendering Engines: Designed to be universally consistent across different engines and platforms. The same PBR materials will look almost identical in various applications, from real-time rendering engines like Unreal Engine to offline renderers like V-Ray. This consistency is crucial for artists and developers working in collaborative environments or switching between different platforms.
• Reduced Art Pipeline Complexity: By using a physically accurate approach to rendering, PBR reduces the need for complex and overly specific artistic tweaks. Artists can spend more time focusing on the artistic side of things while relying on PBR to handle the technical accuracy of materials.
• Improved Workflow Efficiency: Since PBR materials are based on real-world properties, artists can focus on tweaking properties like roughness and metallic value, rather than adjusting settings to make materials look good in specific lighting setups. This approach significantly improves the efficiency of the workflow, especially when dealing with complex scenes with multiple materials.

PBR Principles

Physically Based Rendering follows several core principles that govern how light interacts with materials. These principles are critical in ensuring that PBR materials look realistic under all lighting conditions.

• Energy Conservation: This principle ensures that the amount of light reflected from a surface is less than or equal to the amount of light hitting it. This prevents materials from reflecting more light than they receive, which would be physically impossible.
• Microfacet Theory: PBR materials simulate the surface of an object as if it were covered in microscopic facets or rough surfaces. This allows for a more accurate depiction of how light interacts with materials like matte, which can result in more realistic reflections and highlights.
• Linear Workflow: Ensure color values are treated in a physically accurate way. In this workflow, lighting and textures are processed without gamma correction, allowing for more realistic color representation and light interaction.
• Energy-Conserving Reflectance: Materials are defined by a F0 value, which determines the reflectance of light at grazing angles. For most materials, this value is quite low, but for metals and other reflective surfaces, it’s much higher. This allows PBR to simulate materials that reflect light more naturally.

Types of Texture Maps in PBR

Texture maps are integral to PBR because they define the material’s surface characteristics. Here are some of the most common texture maps used in PBR workflows:

1. Albedo Map (Diffuse Map): The albedo map defines the base color of the material without any lighting effects. It’s essentially the texture that gives the surface its fundamental color.
2. Normal Map: Normal maps simulate surface detail, like bumps and wrinkles, without adding additional geometry. They allow for more complex and realistic material effects by altering the surface normal vectors.
3. Roughness Map: This map controls how smooth or rough a material appears. A rough surface will scatter light in many directions, creating a matte appearance, while a smooth surface will reflect light sharply, creating a glossy look.
4. Metallic Map: The metallic map defines which parts of a material are metallic. Metals have different light interactions than non-metals, reflecting much more light and absorbing very little. This map helps differentiate between metals, plastics, and other non-metallic materials.
5. Ambient Occlusion Map: Used to simulate soft shadows and contact shadows, giving materials a more grounded and realistic appearance by adding subtle shading in crevices and corners.
6. Height Map: Height maps provide depth information to the surface, giving it the illusion of being more detailed or raised without adding additional geometry.
7. Emissive Map: Used to make parts of a material appear to glow. This is often used for light sources or for materials that emit light in a scene.

Physically Based Rendering (PBR) Applications

PBR has found applications across various industries, including video games, film production, architectural visualization, and VR/AR development. Some of the most notable applications include:

1. Video Games: PBR has become the standard in modern video games, as it allows for more immersive and visually consistent experiences. Real-time game engines support PBR workflows to ensure realistic lighting and material interaction, regardless of the game’s environment.
2. Film and Animation: Widely used in the film and animation industry for rendering CGI characters, environments, and props. By using PBR, artists can achieve highly realistic materials and lighting that blend seamlessly with live-action footage.
3. Architectural Visualization: Architects and designers rely on PBR to create realistic renders of buildings and interior designs. The realistic lighting and material interactions allow clients to visualize how their spaces will look in the real world.
4. Virtual and Augmented Reality: PBR ensures that virtual and augmented environments look consistent and realistic when viewed through VR or AR devices. This enhances the immersion and believability of the digital content.

Final Thoughts

By adhering to the principles of physics and using texture maps to define material properties, PBR allows 3D designers to create more lifelike and visually accurate renders. Whether you’re working in real-time environments or offline renderers, adopting PBR ensures that your digital creations will stand the test of time.
