Choosing the Best GPU for 3D Rendering: A Comprehensive Guide

When deadlines are tight, the best GPU for 3D rendering can save hours. A strong graphics card speeds up final renders, improves viewport smoothness, and, importantly, lets you work with bigger scenes. Moreover, modern render engines (like Cycles, Octane, Redshift, and Arnold GPU) increasingly use the GPU for ray tracing and denoising, so your choice truly impacts everyday productivity.

Key Specs to Watch

Before you buy, focus on the essentials. Because specs can be confusing, use this quick checklist:

VRAM (Video Memory)
- 8 GB: small scenes and learning.
- 12–16 GB: medium scenes, 4K textures, complex lookdev.
- 24 GB or more: heavy scenes, large textures, big sims.
Tip: VRAM is usually the first limit you hit. More VRAM = fewer crashes and less out-of-core slowdowns.
GPU Architecture & APIs
- CUDA/OptiX (NVIDIA) is widely supported across many DCCs and renderers.
- HIP/Metal (AMD/Apple) support is growing, but compatibility varies by tool.
Therefore, check your primary renderer’s compatibility list first.
Compute & Ray-Tracing Cores
- RT/Tensor/AI cores (NVIDIA) accelerate ray tracing and denoising.
- More cores help, but only when your software can use them.
Power & Cooling
- Higher-end GPUs draw more power (and heat).
- Good airflow prevents thermal throttling; consequently, performance stays stable.
Ports & Form Factor
- Ensure your case, PSU, and motherboard can fit and power the card.
- Also, check the display outputs if you run multiple monitors.

Recommended GPUs by Use Case & Budget

Note: Model names are stable, but pricing changes often. Choose based on VRAM + software support first.

Starter / Budget

NVIDIA RTX 4060 Ti (16 GB) — Entry rendering with extra VRAM; however, bandwidth is modest.

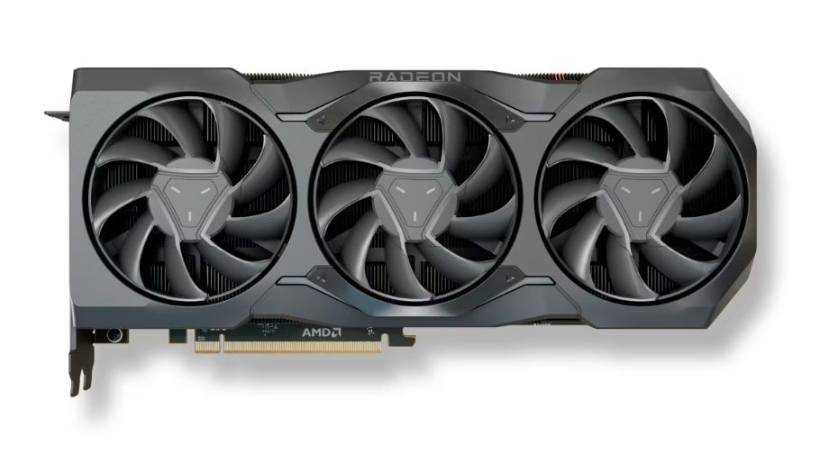

AMD RX 7800 XT (16 GB) — Strong price/perf for viewport and HIP-enabled renders (e.g., Blender), but check your renderer first.

Mid-Range

NVIDIA RTX 4070 Ti Super (16 GB) — Great OptiX performance, efficient power draw, balanced for Blender/Maya/C4D users.
NVIDIA RTX 4080 Super (16 GB) — Faster path tracing, solid for 4K lookdev; moreover, excellent denoising speeds.

High-End

NVIDIA RTX 4090 (24 GB) — The popular choice for freelancers and studios needing speed + large VRAM.
AMD Radeon PRO W7900 (48 GB) — Massive VRAM for huge scenes; nonetheless, renderer support varies, so verify your stack.

Workstation / Enterprise

NVIDIA RTX 6000 Ada (48 GB) — Top-tier OptiX, huge VRAM, ECC; ideal for film/VFX facilities.
Dual-GPU Setups — Great for parallel GPU renderers, but watch power, thermals, and chassis space.

Quick Comparison

Segment	Model	VRAM	Why pick it
Budget	RTX 4060 Ti	16 GB	Affordable VRAM for beginners and light scenes.
Value	RTX 4070 Ti Super	16 GB	Excellent CUDA/OptiX support and speed per watt.
Upper-Mid	RTX 4080 Super	16 GB	Faster path tracing; great for 4K lookdev and finals.
Pro Solo	RTX 4090	24 GB	Best all-around: speed + VRAM for complex projects.
Big VRAM	Radeon PRO W7900	48 GB	Huge scenes; check HIP support for your renderer.
Studio	RTX 6000 Ada	48 GB	Enterprise reliability, ECC, and top OptiX performance.

Reminder: If your scenes crash due to memory, moving “up” to more VRAM often helps more than a small compute bump.

Software Notes

Blender Cycles: CUDA/OptiX (NVIDIA) is very fast; HIP (AMD) works and keeps improving.
Octane / Redshift: Traditionally favor NVIDIA CUDA/OptiX; therefore, NVIDIA is the safer bet.
Arnold GPU: NVIDIA focus; CPU mode remains robust for reference.
Unreal/Unity: Both vendors work, but ray-tracing features and denoisers lean toward NVIDIA in many pipelines.

Because renderer support evolves, always check your tool’s latest docs before buying.

Viewport vs Final Render: What Changes?

Viewport Performance
Higher raster and RT performance = smoother navigation, faster material previews, and better lighting feedback. As a result, you iterate faster.
Final Render Speed
More CUDA/RT cores (and strong AI/denoise hardware) = faster path tracing, less time waiting, more time creating.

Practical Buying Tips

Pick by VRAM first, then compute. If your scenes are big, 24 GB can be a lifesaver.
Match your renderer. If your main engine loves OptiX, choose NVIDIA. If HIP is solid for your workflow, AMD may offer more VRAM per dollar.
Mind your PSU and case. High-end cards are large and power-hungry.
Prefer dual-fan or better. Good cooling keeps clocks high; therefore, performance stays consistent.
Consider two cards—later. Start with one great GPU; add a second when your jobs justify it.

When to Use Cloud Rendering

Even the best GPU for 3D rendering will sometimes struggle with deadlines or huge frames. That’s when 3S Cloud Render Farm helps. You can burst heavy jobs to the cloud, render in parallel, and keep your workstation free for lookdev and edits. In addition, you avoid big upfront hardware costs while staying flexible.

FAQ

1) What is the best GPU for 3D rendering today?
For most professionals, the RTX 4090 balances speed and 24 GB VRAM. However, for enterprise pipelines, the RTX 6000 Ada offers 48 GB and ECC.

2) Is VRAM or core count more important?
Both matter, but VRAM limits hit first. Therefore, choose enough VRAM for your scene size, then optimize for cores.

3) Can AMD GPUs handle 3D rendering well?
Yes—especially in tools with solid HIP paths (e.g., Blender). Nevertheless, check your renderer’s compatibility before you commit.

4) Do I need multiple GPUs?
Not always. Start with one strong GPU. If your renderer scales well and deadlines are tight, a second card can help.

5) Should I buy or use cloud rendering instead?
Do both. Keep a capable local GPU for lookdev; use 3S Cloud Render Farm to burst large shots and meet deadlines.

Conclusion

Choosing the best GPU for 3D rendering comes down to three things: VRAM capacity, software support, and reliable cooling/power. For most users, a 16–24 GB NVIDIA card with OptiX support is the safest path. Meanwhile, if you need massive scenes on a budget, high-VRAM AMD options can shine—provided your renderer supports them.

Finally, remember: hardware is only half the puzzle. With 3S Cloud Render Farm, you can scale renders on demand, finish faster, and keep creating—without compromising quality or your workflow.
